YX-60G
ITZ
| Quantity: | |
|---|---|

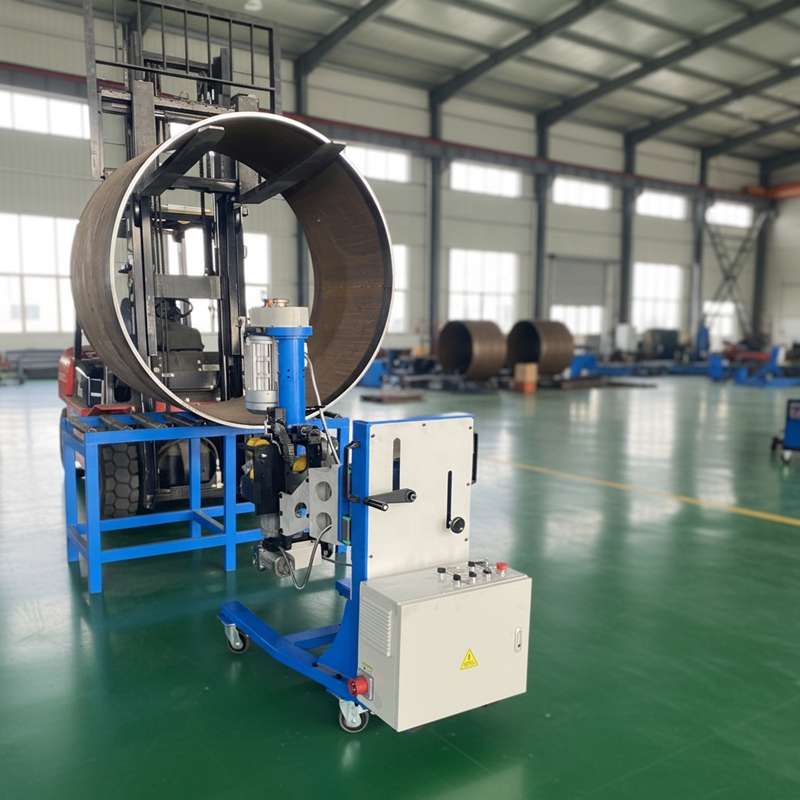

YX-60G Pipe Beveling Machine is a dedicated solution for heavy-duty large bore and thick wall pipe edge preparation.
The patented flip-style structure enhances flexibility and processing range, while robust power and precision cold milling guarantee flat pipe ends and consistent bevel geometry for both internal and external bevel profiles.
Capable of processing carbon steel, stainless steel, alloy steel and other high-strength pipes, it drastically speeds up pipe welding preparation and eliminates excessive manual grinding. It is the premier pipe beveling equipment for major pipeline construction and heavy fabrication projects.
Model Number | YX-60G |
Product Name | Reversible Head Pipe Edge Milling Machine |
Power Supply | 380V/50Hz Three-phase AC |
Motor Power | Total: 4.67KW Cutting main motor: 4KW |
Spindle Speed | 1050r/min (Adjustable) |
Bevel Processing Speed | 0-1.5 m/min (Stepless frequency conversion adjustable at will) |
Clamp Plate Thickness | 6-50mm |
Processing Bevel Angle | 0°-90° (Adjustable at will) |
Cutting Disc Diameter | 68mm |
Number of Blades per Disc | 6 pcs |
Applicable Pipe | ≥Φ700mm |
Applicable Pipe Height | >850mm |
Single Bevel Width | 0-15mm |
Number of Traveling Clamping Wheels | 2 upper + 2 lower |
Processing Method | Milling |
Processable Materials | Carbon steel, stainless steel, alloy steel, cast iron, copper plate, aluminum plate, etc. |
Bevel Smoothness | Ra3.2-6.3 |
1. Specially designed for large workpieces, significantly improving production efficiency for heavy-duty processing.
2. Adopts full cold cutting processing, no oxidation or deformation on the bevel surface, meets international welding technical requirements and is suitable for flaw detection radiography.
3. Usable for pipes in both vertical and horizontal placement, strong adaptability to on-site processing conditions.
4. Stepless frequency conversion speed regulation during processing, flexible for different material and bevel requirements.
5. Stable spindle locking with easy release, ensuring processing accuracy and operational convenience.
6. Electric lifting system for simple and labor-saving operation, reducing manual work intensity.
7. Compact structure with stable performance, easy to operate and maintain for on-site use.
Far higher efficiency than manual chamfering, applicable for a wide range of workpieces in welding industry.
