YX‑15A
ITZ
| Quantity: | |
|---|---|
Model number | YX-15A |

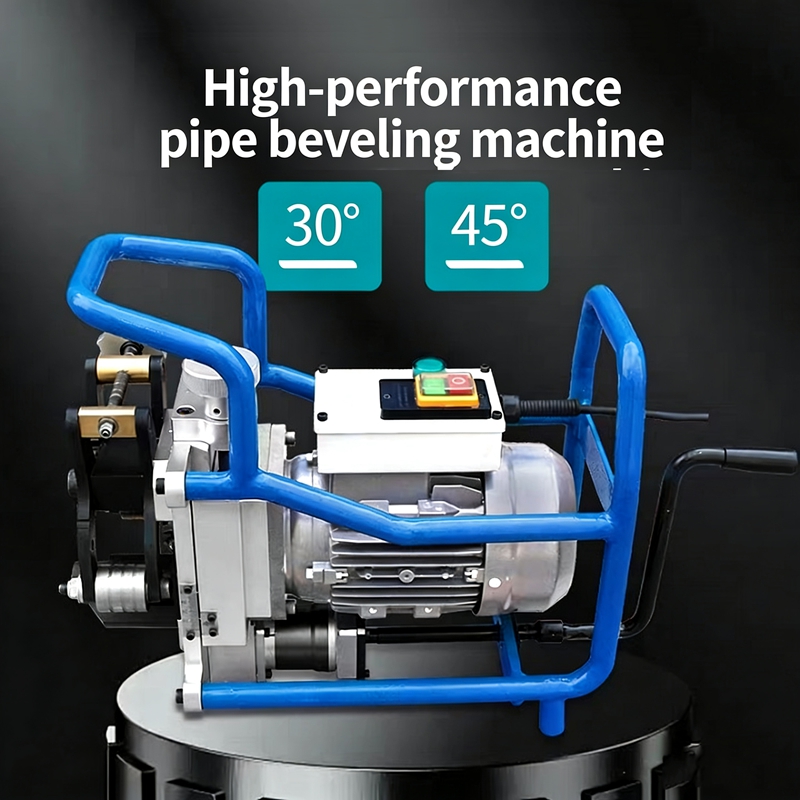

Name | Hand-operated Unlimited Travel Pipe Beveling Machine |
Power | 380V/50Hz |
Motor power | 1.1kw |
Motor speed | 2000r/min |
processing groove speed | 0.1-1.5meters per minute |
Clampplate thickness | 3-20mm |
Spindle speed | 45°/37.5°/30° |
head diameter | 62mm |
Number of blades | 4 pieces |
Maximum groove width | 15mm |
Groove finish | Ra3.2-6.3 |
✅ Compact & convenient, ideal for remote job sites, narrow trenches and emergency pipe maintenance.
✅ Lightweight & portable design Compact body, easy to move, clamp directly onto the pipe and operate without additional heavy machinery.
✅ Precision cold beveling Adjustable bevel angles, smooth burr-free cuts, no pipe burning or deformation, ready for direct welding
· Min. processing pipe diameter: 125mm, no maximum limit; Max. bevel width: 15mm
· Replaceable cutter head for precise beveling
· Ideal for pipe welding in pressure vessel, petroleum, chemical, aerospace, shipbuilding, power & boiler industries
· Unlimited stroke, compatible with pipes of all lengths
· Portable & flexible, suitable for various field and outdoor sites
· Sturdy build, smooth and uniform machining effect with high precision
· Easy operation, low noise & wear, low maintenance cost
