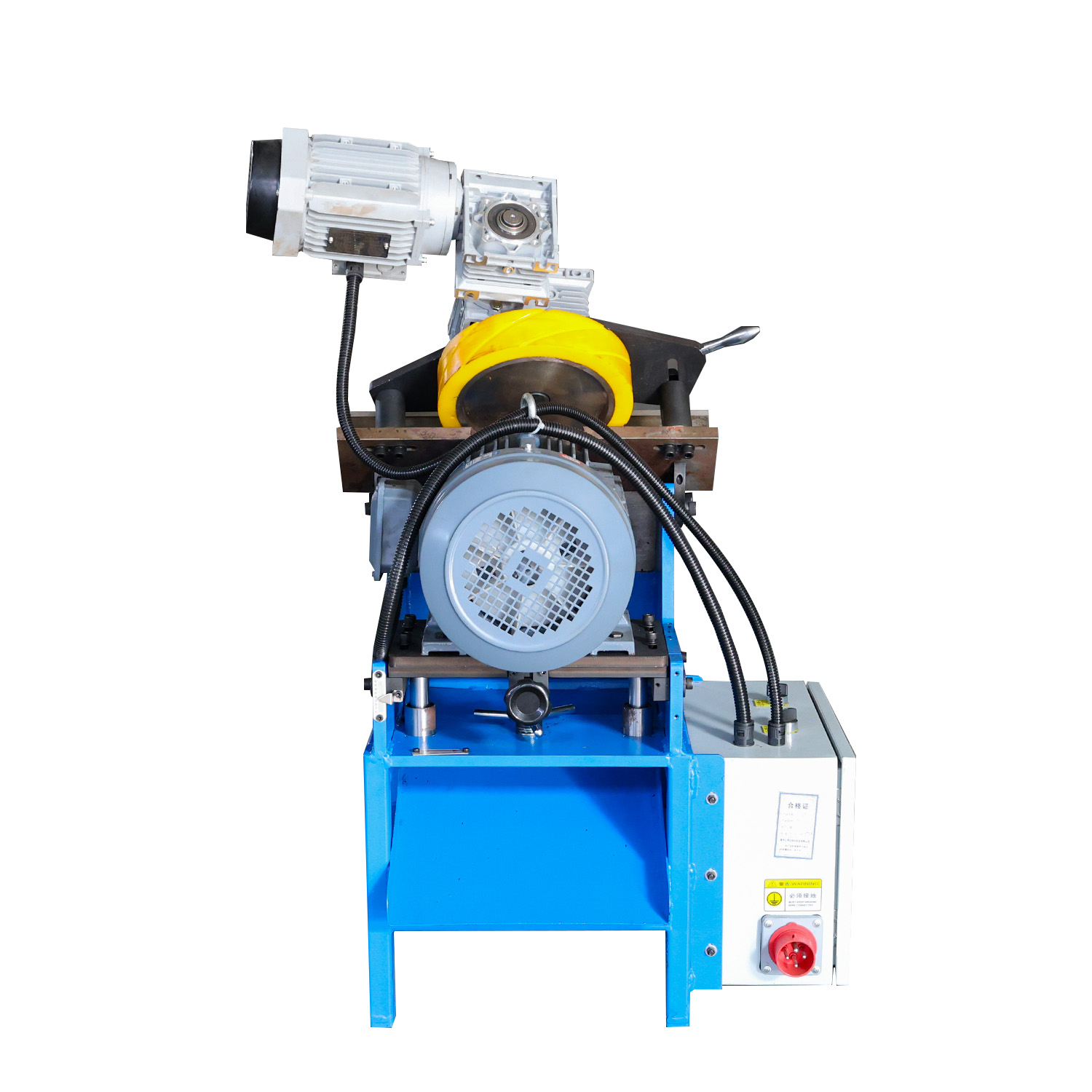

YX-30X
| Quantity: | |
|---|---|
Model Number | YX-30X |
Product Name | Table Single Side Beveling Machine |
Power Supply | 380V/50Hz |
Motor Power | Total: 6.6KW; Cutting main motor: 5.5KW (380V/50Hz); Traveling motor: 1.1KW (220V/50Hz) |
Spindle Speed | 1440r/min |
Groove Cutting Speed | 0.1-1.5 meters per minute (frequency conversion adjustable at will) |
Clamp Plate Thickness | 3-40mm |
Processing Bevel Angle | 30°-60° |
Cutting Disc Diameter | 80mm |
Number of Blades | 20 pcs |
Workbench Height | 670mm-750mm |
Bevel Width | 2-20mm |
Product Dimension | 790mm×600mm×1160mm |
Net Weight | Approx. 200kg |
Processing Method | Milling |
Processable Materials | Carbon steel, stainless steel, alloy steel, cast iron, copper plate, aluminum plate, etc. |
Bevel Smoothness | Ra3.2-6.3 |
YX-30X It supports processing of carbon steel, stainless steel, aluminum sheets, iron plates and various other metal plates. The bevel angle is adjustable, delivering even, smooth surfaces free of burrs and oxide layers. No secondary grinding is required, allowing direct entry to welding procedures, greatly improving finished product quality and overall production efficiency.
· Robust bench structure for superior processing accuracy
· Compact footprint to save valuable workshop floor space
· Multi-material compatibility for versatile use: edge milling, radius chamfering and round steel plate processing
· Mirror-smooth bevel surfaces to eliminate rework grinding
· Intuitive operation for faster cycle times and higher productivity
If you are looking for an affordable, stable and efficient beveling & chamfering machine, this compact bench model is an excellent choice to simplify workflows, boost quality and cut production costs.
