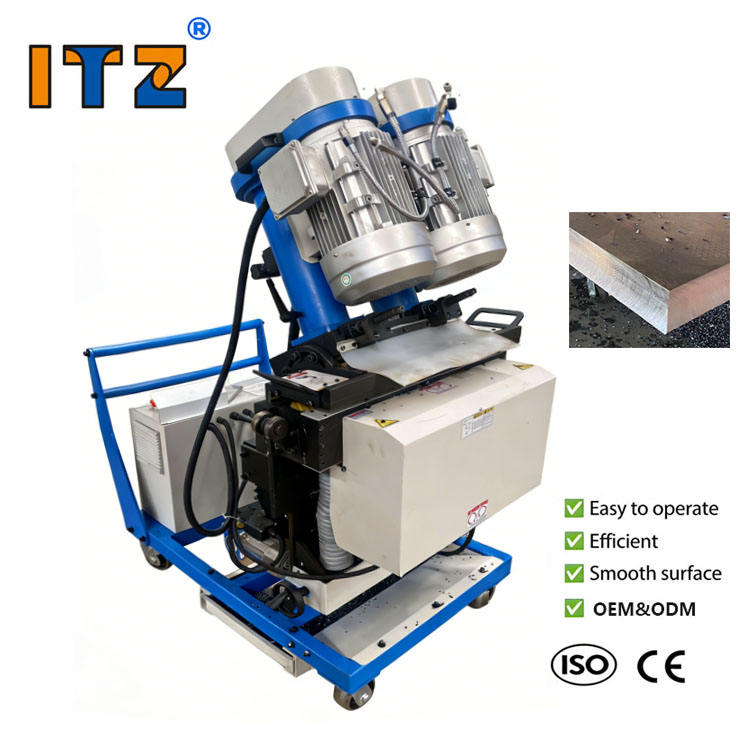

YX-200D Double‑shaft Heavy‑duty Plate Beveling Machine

The YX‑200D double‑shaft plate beveling machine covers a machining thickness range of 4‑150 mm, compatible with both thin and thick plates, solving the thickness‑limit problem of ordinary models.
The bevel angle can be adjusted freely from 0° to 90°. It can process various bevel types including V, K/X/Y, U and R‑shaped bevels, straight‑edge chamfers and inclined‑edge milling, meeting various welding‑bevel process requirements in steel structure, pressure vessel, bridge and shipbuilding industries.
  • YX‑200D

  • ITZ

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Dezhou Yixiang Automation Technology Co., Ltd. is a leading professional manufacturer, supplier and exporter, whose products are widely applied in steel structure, shipbuilding, aerospace, pressure vessel, petrochemical, oil & gas and all welding industry manufacturing. With over 14 years of industry experience since 2012, our machines enjoy a high reputation in both domestic and international markets.

Our products have been exported to more than 50 markets including Australia, Russia, Asia, New Zealand, Europe and other regions, making a significant contribution to improving the efficiency of metal edge beveling, milling and welding preparation. We have built a complete professional team system covering production, R&D, logistics, sales and after-sales service, providing all-round and thoughtful assistance for global customers.

Guided by the principles of energy saving, high efficiency and safety, our professional engineer team keeps developing and upgrading our machines to meet the ever-growing market demands. Adhering to the mission of "Quality, Service and Commitment", we are dedicated to providing customers with the optimal solutions by virtue of superior product quality and premium one-stop services.

Product Specification

Model Number

YX-200D

Product Name

Double-spindle Single-side One-time Forming Beveling Machine

Power Supply

380V/50Hz Three-phase AC

Motor Power

Total: 9.04KWCutting main motor: 4KW2 (380V/50Hz)Traveling motor: 0.4KW2 (380V/50Hz)Clamping motor: 0.12KW*2 (380V/50Hz)

Spindle Speed

0-1050r/min

Bevel Processing Speed

0-1.5 m/min (Stepless frequency conversion adjustable at will)

Clamp Plate Thickness

4-150mm

Processing Bevel Angle

0°-90° (Spindle translation/angle adjustable at will)

Cutting Disc Diameter

80mm

Number of Cutting Discs/Blades

2/7 pcs

Workbench Height

900mm

Bevel Width

20-110mm (Processable by multiple translation)

Bevel Type

K/V/X/Y/U/R type + Upper bevel 1 + Upper bevel 2 + Side plate 0° bevel

Clamping Control Mode

Electric automatic plate clamping (Ensure stable clamping force)

Processing Method

Milling

Transmission Clamping Assembly

17 sets of transmission wheels (11 upper + 6 lower)

Processable Materials

Carbon steel, stainless steel, alloy steel, cast iron, copper plate, aluminum plate, etc.

Bevel Smoothness

Ra3.2-6.3

Product Advantages

1. Adopts full cold cutting processing, no oxidation or deformation on the bevel surface.

2. Meets international welding technical requirements and is suitable for flaw detection radiography.

3. Stepless frequency conversion speed regulation during processing; double spindles work simultaneously to greatly improve production efficiency.

4. Compact structure and stable performance, easy to operate and maintain.

5. Far higher processing efficiency than manual chamfering with a wide range of applicable workpieces.

6. Adaptable to various metal materials and multiple bevel types for diverse welding needs.
